Product description
Portable Liquid Pump & Filter Systems
Filtration Systems Portable Liquid Pump & Filter Systems are designed to pump, transfer, and filter liquids from tanks, drums or other reservoirs. As an essential piece of equipment for any industrial facility where liquids are present, it is ideal for multiple-site batch filtering, recycling of expensive process fluids, or cleanup of accidental spills. Portable Liquid Pump & Filter Systems are designed for use with high performance filter bags, strainer baskets, or cartridges filters.
Applications
Portable Systems are extremely effective for batch processing and/or clean-up of accidental spills. Some liquids that are compatible with these systems include:
- ACIDS – ADHESIVES – BEVERAGES – BULK CHEMICALS – COOLING OILS
- COSMETICS – CUTTING FLUIDS – DETERGENTS – FOOD – FUEL OIL
- HYDRAULIC OIL – INKS – PAINTS & VARNISHES – PETROCHEMICALS
- PHARMACEUTICALS – PROCESS WATER – RESINS – SLUDGES – SLURRIES
- SOLVENTS – VEGETABLE OILS – WATER
System Features
- Completely packaged system includes Over-The-Top® housing and double diaphragm pump, mounted to a portable cart or stand
- Easily operated by single user
- Non-Electric System
- Requires No Special Tools
- All hoses/wands, gauges and valves included
- Systems can be used with Filter Bags, Filter Cartridges, Strainers, or Mesh/Micron Lined Baskets
Pump Features
- Air-Powered Double Diaphragm Pump
- Self-Priming from a dry start
- Can run dry without damage
- Stops automatically if discharge is closed; resumes running when line is open
- Low internal velocity allows trouble-free pumping of abrasives or viscous materials
Models

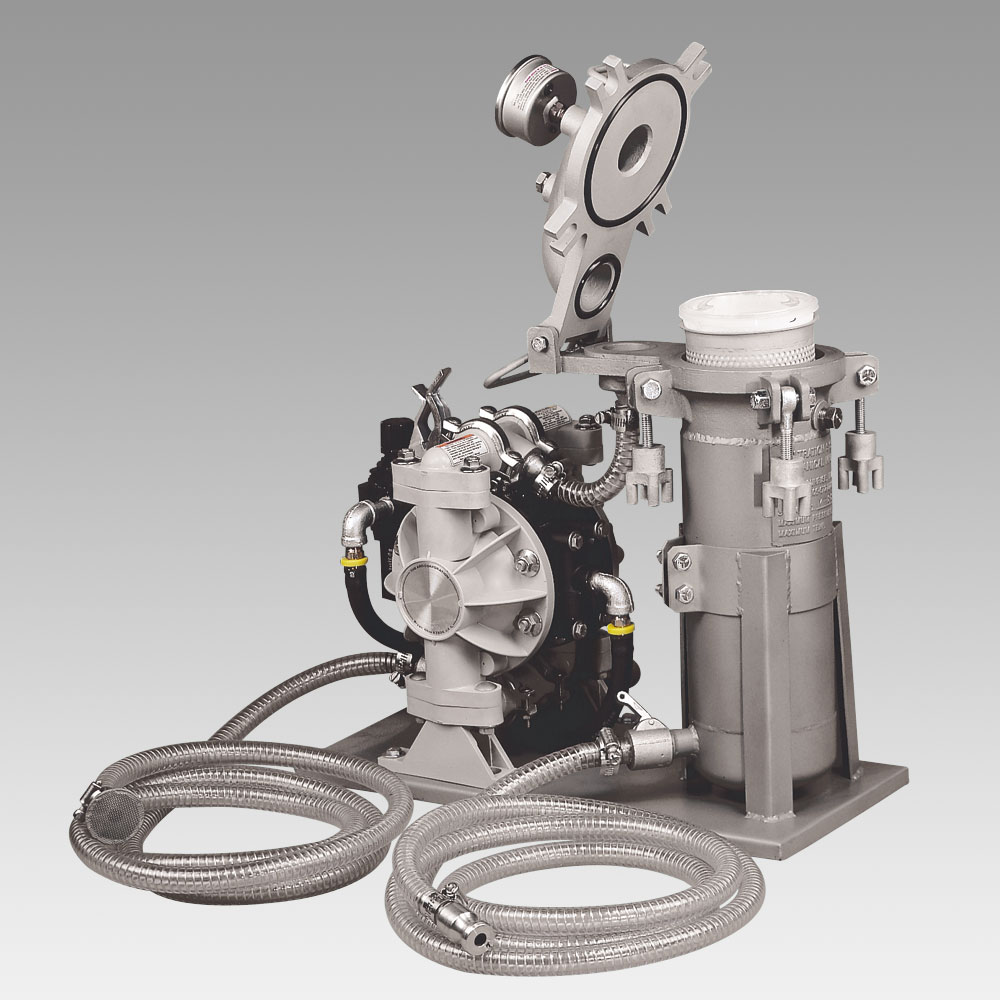

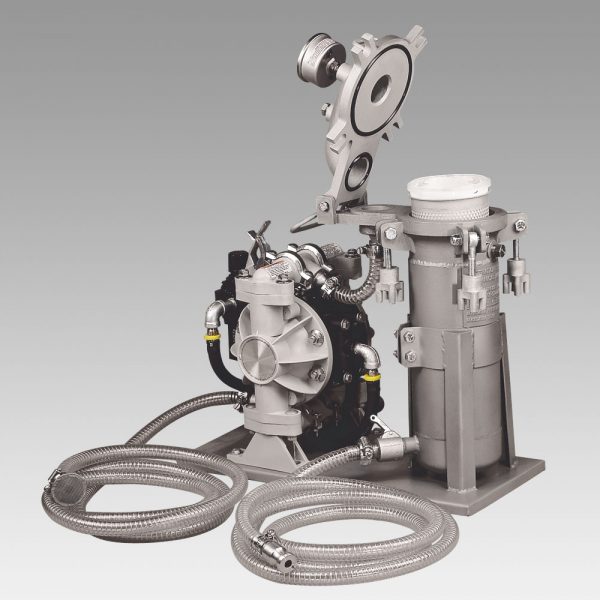

- PNS-141-10
- Stainless Steel Filter Housing (NS-141 or NS-151) with Polypropylene Pump
- Operating Capacity 13gpm

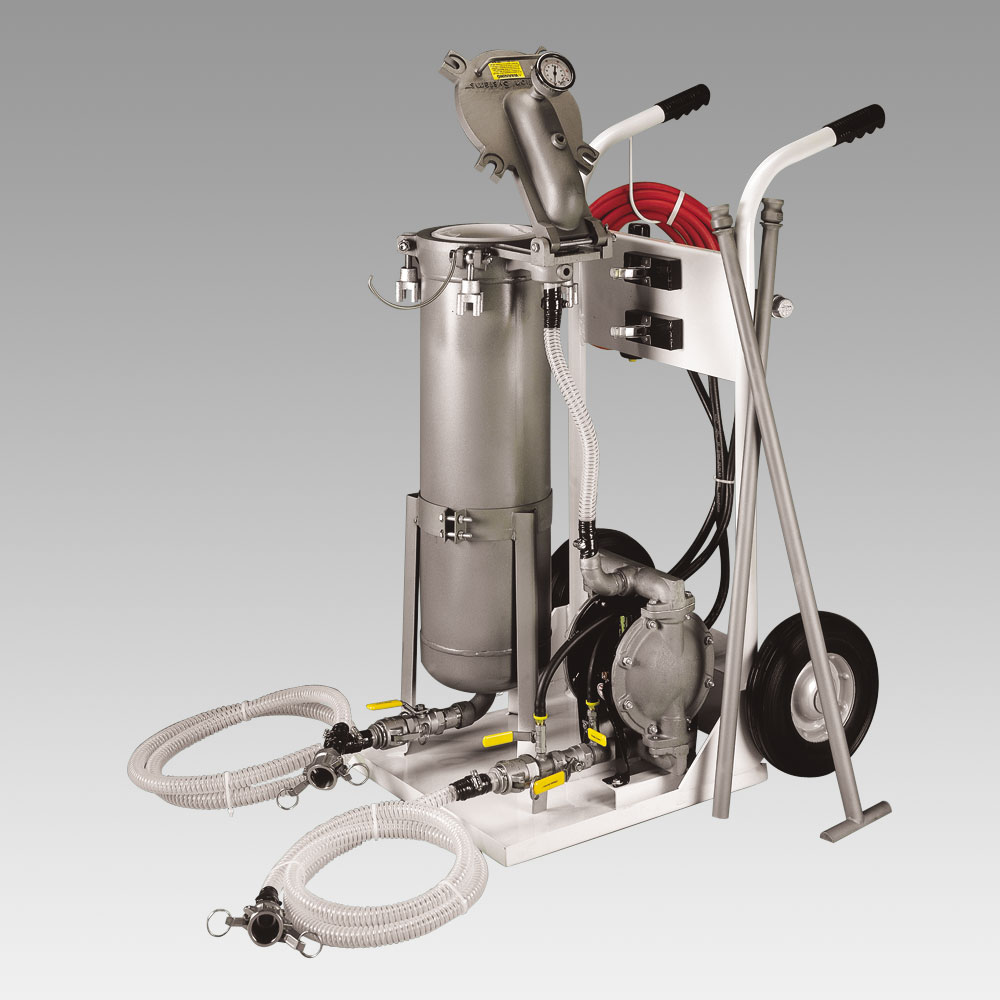

- PNS-122-35
- Stainless Steel Filter Housing (NS-122) with Stainless Steel Pump
- Operating Capacity 35gpm
- PNC-122-35
- Carbon Steel Filter Housing (NC-122) with Aluminium Pump
- Operating Capacity 35gpm
- PNF-122-35 – Non-Ferrous System
- Stainless Steel Filter Housing (NS-122) with Aluminum Pump
- Operating Capacity 35gpm
- PNS-122-75
- Stainless Steel Filter Housing (NS-122) with Stainless Steel or Aluminum Pump
- Operating Capacity 100gpm

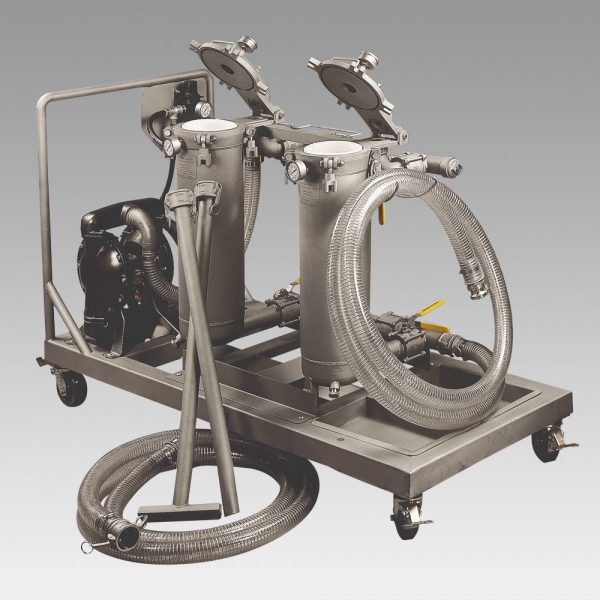

- PNS-222-V-135
- Stainless Steel Filter Housing (NS-222-V-PS) with Stainless Steel or Aluminum Pump
- Operating Capacity 135gpm
- PNS-151/122-35 – Test Process System
- Stainless Steel Filter Housings (NS-151 & NS-122) with Stainless Steel Pump
- Operating Capacity 35gpm
- PNDF-4 – Disc Filter Housing System
- Stainless Steel Disc Filter Housing with Polypropylene Pump
- Operating Capacity 0.5gpm
