Multi-Housing Filter Systems

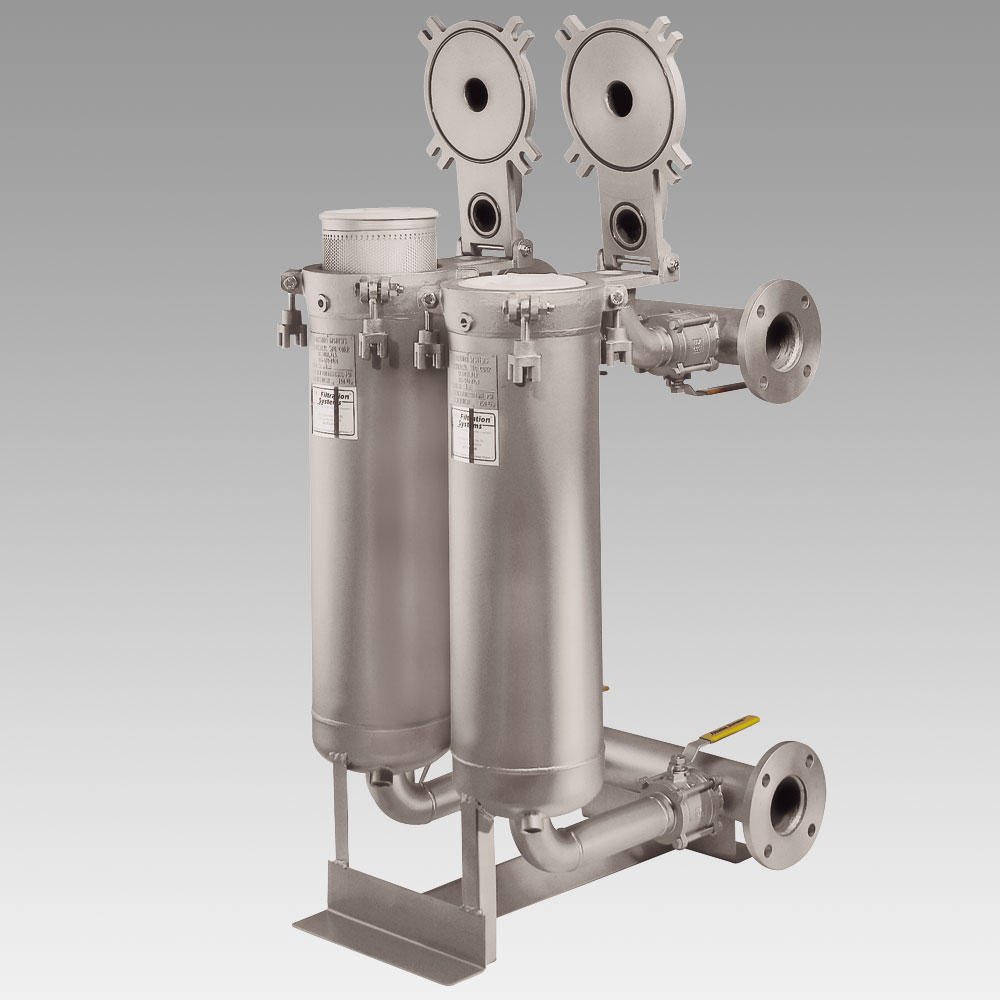

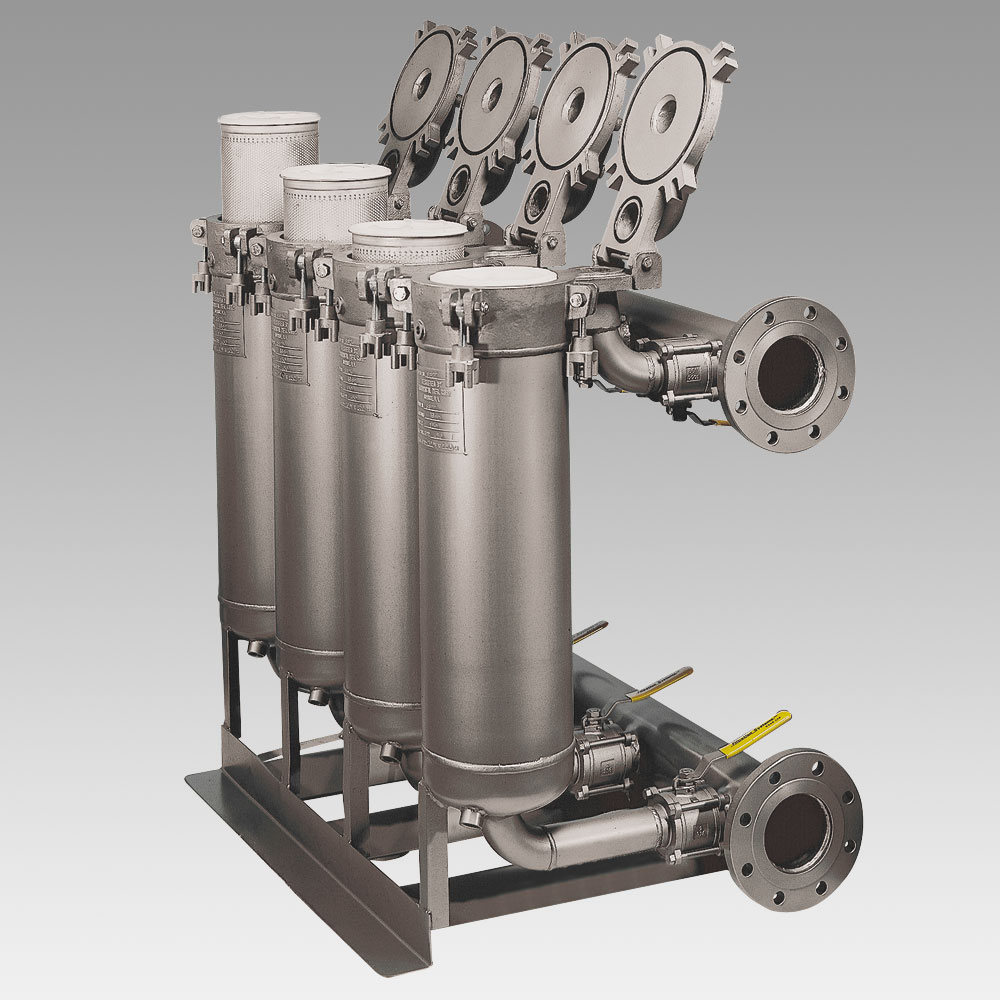

Filtration Systems Multi-Housing bag filter systems use #2 size filter bags (7″dia. x 32″long), and are available with 2 to 8 modules, accommodating all flow rate requirements. Multiple vessels, operating in parallel, enhance filtering capacity.

Models with a suffix of “ -V” have two Stainless Steel Ball Valves per module, installed on the inlet and outlet of the vessel. Functioning as shut-off valves, they isolate individual housings from the filtering process. Each vessel on a valved, multi-housing system operates independently, allowing continuous service during media removal and replacement. Multi-Housing Systems are available with or without valves.

All Multi-Housing Systems are equipped with two inlet & two outlet connections. Alternate connection ports allow users the option of choosing the inlet and outlet site that best suits space and piping requirements. The remaining unused ports are sealed with (user-furnished) blind flanges.

Filter housings accommodate a variety of filter media, including Filter Bags, Mesh and Micron Lined Baskets, Strainers, or Cartridges, making them extremely versatile for industrial, pharmaceutical, cosmetic, water, beverage, food and other process applications.

Filtration Systems versatile, modular design provides:

• Simplified Installation
• Equipment expansion
• Staged (Series) Filtration
• Header Inspections
• Header Cleaning

Standard Features

• Over-The-Top Design
• ASME Code Stamp, Section VIII, Div.1 (S- Models & C- Models)
• Built to ASME Code standards (NS- Models & NC- Models)
• Blasted Finish, interior, exterior, and basket All Stainless Steel Models
• One Coat Shop Primer, exterior All Carbon Steel Models
• Investment Cast Lid and Body
• Hinged Lid with Handle, Built-in Lid Stop and Safety Detents
• Plated Carbon Steel Hardware, closure bolts & bar knobs
• Gauge Ports, upstream & downstream, ¼″ NPT
• Vent Ports, ¼″ NPT
• Upstream Drain Port, ¼″ NPT Downstream Drain Port, ¾″ NPT
• Perforated T-316 S/S Support Baskets with Longitudinal Taper
• Buna-N O-Rings
• Stainless Steel, Adjustable Tripod Stand (All Stainless Steel Models)
• Carbon Steel, Adjustable Tripod Stand (All Carbon Steel Models)

ASME Housing Specifications (S- Models & C- Models)

• T-316 Stainless Steel or Carbon Steel
• Maximum Working Pressure: 150psi or 300psi
• Maximum Working Temperature: 450°F
• Maximum Support Basket Differential Operating Pressure: 100psi
• Hydrostatically Tested to 250psi or 450psi (300psi Models)
• Ball Valves: 2″ Full-Port, Three-Piece, T-316 Stainless Steel/Teflon, 800psi, 2 per housing
• Inlet & Outlet: 2″, 4″, or 6″ Flanges, R/F, ANSI

Industrial Grade Housing Specifications (NS- Models & NC- Models)

• T-304 or T-316 Stainless Steel or Carbon Steel
• Maximum Working Pressure: 150psi
• Maximum Working Temperature: 300°F
• Maximum Support Basket Differential Operating Pressure: 100psi
• Hydrostatically Tested to 250psi
• Ball Valves: 2″ Full-Port, Three-Piece, T-316 Stainless Steel/Teflon, 800psi, 2 per housing
• Inlet & Outlet: 2″, 4″, or 6″ Flanges, R/F, ANSI
