Miniature Valved, Individual Filter Housings
Miniature Liquid Filter Housings provide the ideal solution for straining and fine filtration at lower flow rates or when space is at a premium. Their compact size, low cost, and ability to accommodate a variety of filter media make Miniatures highly versatile.
Filtration Systems Valved, Individual Housings allow liquid flow to be shut off at the unit, rather than at a distant source, saving time during media change-out. Two stainless steel ball valves, on the inlet and outlet of each vessel, function as shut-off valves, isolating the housing from the filtering process.
Miniature Valved, Individual Filter Housings use a #4 size (4″dia. x 14″ long) or a #5 size (4″dia. x 24″ long) filter bag. All housings are built to ASME specifications and are available in T-316 Stainless Steel or Carbon Steel. Alternate inlet and outlet connections may be ordered to allow the vessels to be placed directly in line with existing process piping.
Valved, Individual models accommodate a variety of filter media, including Filter Bags, Mesh and Micron Lined Baskets, Strainers, or Cartridges, making them extremely versatile for industrial, pharmaceutical, cosmetic, water, beverage, food and other process applications.

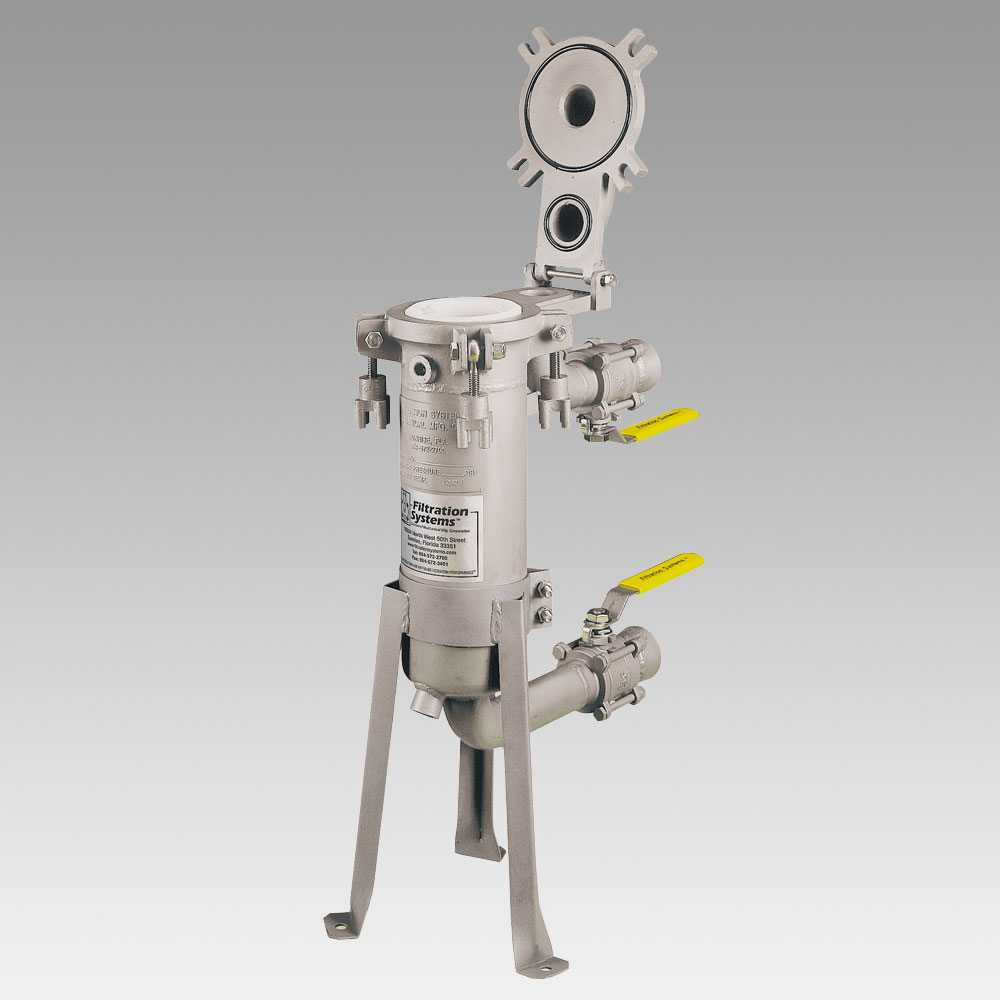

- 141 Models use a #4 size filter bag, accessory basket, or a 10″ cartridge

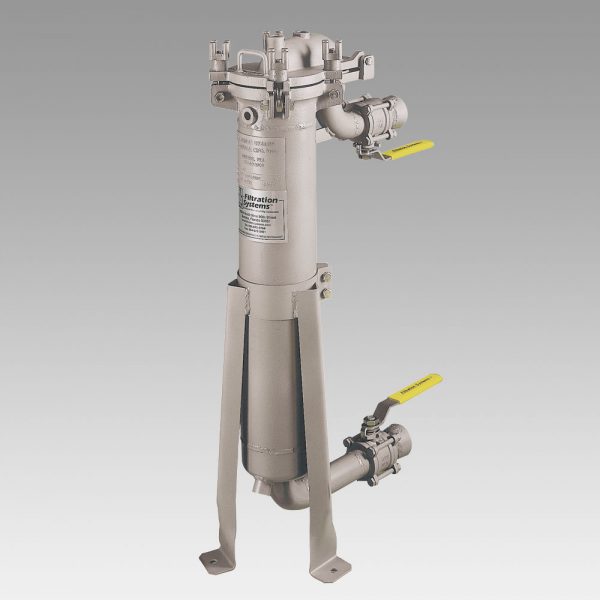

- 151 Models use a #5 size filter bag, accessory basket, or a 20″ cartridge
Standard Features
- Over-The-Top Design
- Built to ASME Code standards (ASME Code optional)
- Blasted Finish, interior, exterior, and basket ( NS- Models)
- One Coat Shop Primer, exterior ( NC- Models)
- Investment Cast Lid and Body
- Hinged Lid with Handle, Built-in Lid Stop and Safety Detents
- Plated Carbon Steel Hardware, closure bolts & bar knobs
- Gauge Ports, upstream & downstream, ¼″ NPT
- Vent Port, ¼″ NPT
- Upstream Drain Port, ¼″ NPT Downstream Drain Port, ½″ NPT
- Perforated T-316 S/S Support Basket with Longitudinal Taper
- Buna-N O-Rings
Miniature Housing Specifications
- NS- Models: T-316 Stainless Steel
- NC- Models: Carbon Steel
- Maximum Working Pressure: 300psi
- Maximum Working Temperature: 250°F
- Maximum Water Flow:
- 55gpm @1.1psid (141 Models)
- (without filter bag) 80gpm @1.5psid (151 Models)
- Maximum Support Basket Differential Operating Pressure: 100psi
- Hydrostatically Tested to 450psi
- Ball Valves: 1¼″ Full-Port, Three-Piece, T-316 Stainless Steel/Teflon, 800psi, 2 per housing
- Inlet & Outlet: 1¼″ NPT
