Low-Profile, Horizontal Outlet Available on all Models
Lower working height means easier filter bag change-out for operators.

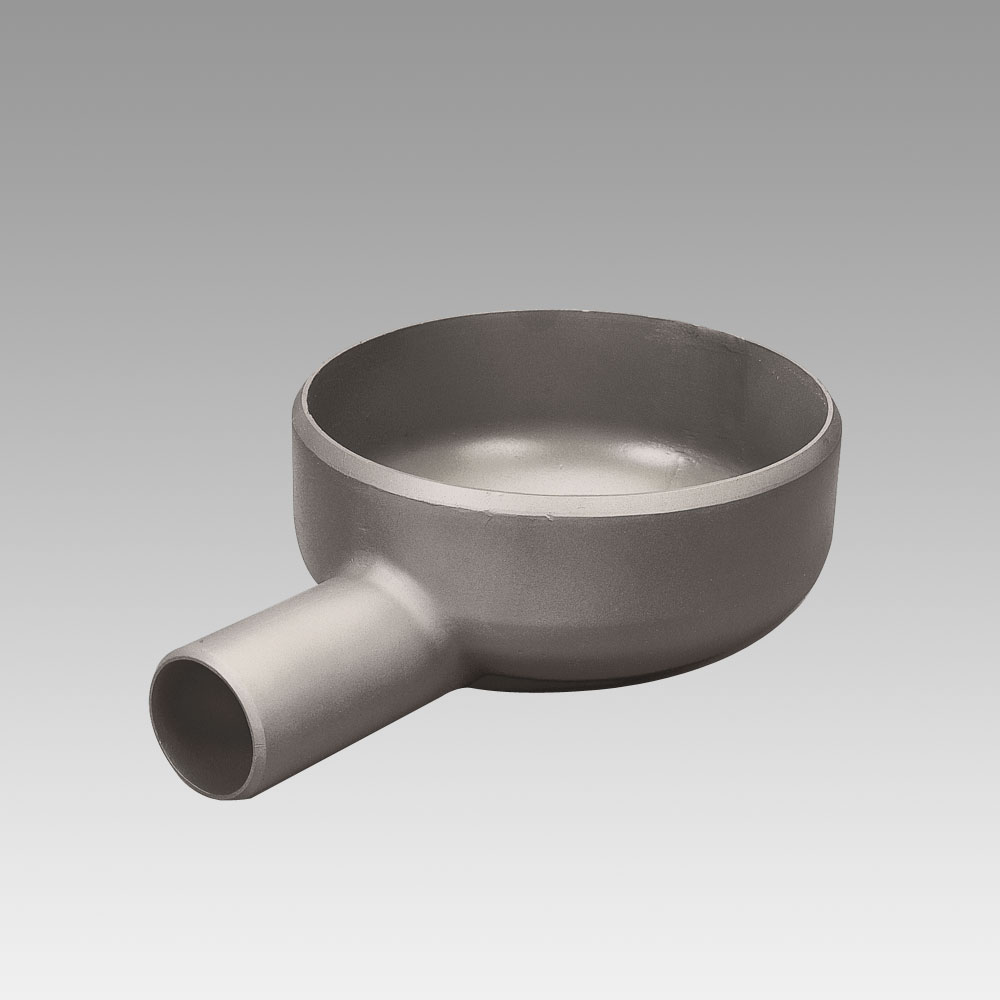

The Low-Profile, Horizontal Outlet is a one-piece investment casting, exclusive to the Filtration Systems product line. This option reduces filter bag removal clearance height by 4″ on single vessels and 3″ on modular systems, eliminating the need for a ladder or platform when changing filter bags. As a result, ergonomic related injuries and accidental spills during change-out may be reduced.
This self-draining outlet is optional on all single filter vessels, duplex and multi-housing systems. The Low-Profile feature can be used on equipment with flanged, threaded, or sanitary connections and is available in stainless and carbon steel.

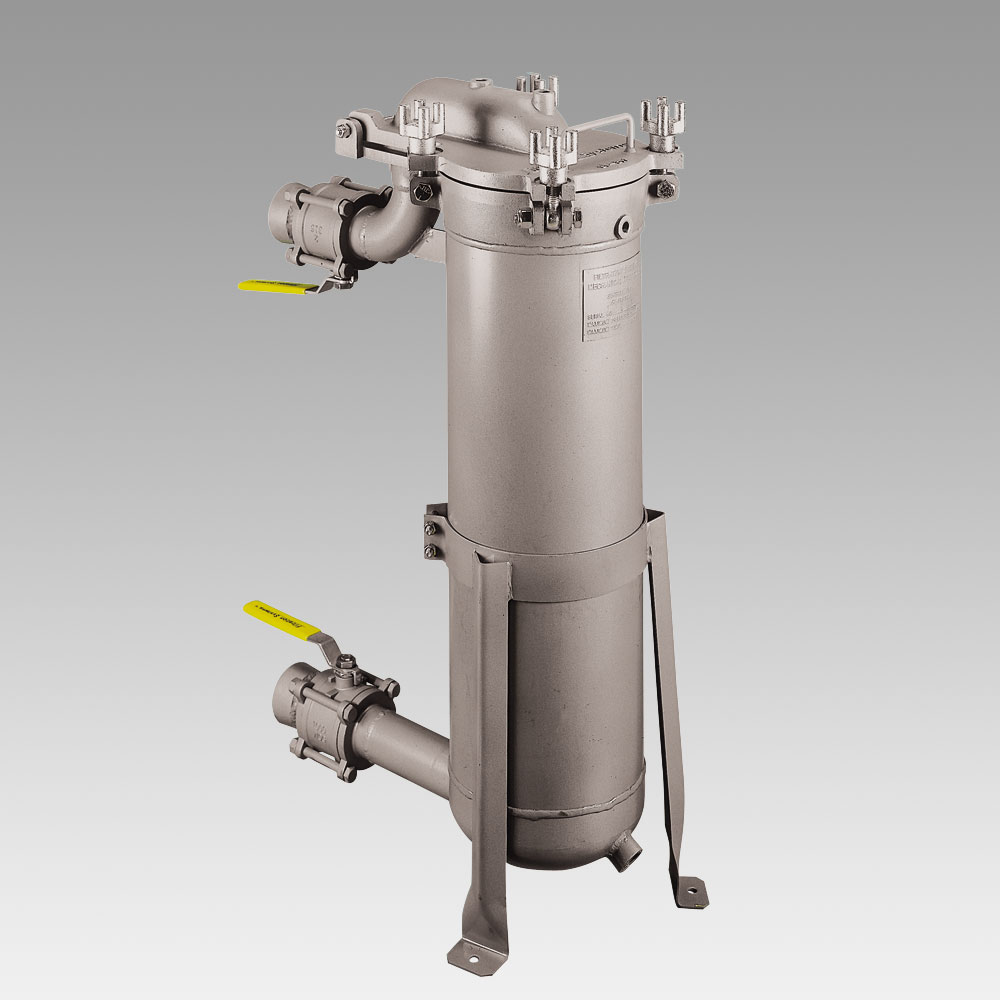

Low-Profile, Horizontal Outlet Configuration Options for Individual Filter Housings
C-Configuration (Inlet Over Outlet)
The outlet of the filter vessel is on the same plane as the inlet, or in the shape of the letter “C”, in a profile view. In this type of configuration, the filter can be used on a loop in piping arrangements.
S-Configuration (Inlet Opposite Outlet)
The outlet of the filter vessel is opposite the inlet, or in the shape of the letter “S”, in a profile view. In this type of configuration, the filter becomes “in-line” with existing piping.
Custom, Low-Profile, Horizontal Outlet Configurations
The outlet of the filter vessel, relative to the inlet, can be positioned to accommodate custom piping arrangements.
To Order:
Single, Duplex, and Multi-Housing systems can be ordered with the Low-Profile option by adding “-LPC” (for C-Configuration) or “-LPS” (for S-Configuration) as a suffix to the desired model number.
Note: In all Low-Profile, Horizontal Outlet (“LP”) configurations, the standard drain placement is opposite the outlet of the vessel. The location of the drain can be modified upon request. Please consult factory for other custom requirements.
