APX® Filter Element combines large surface area and high flow rate to provide massive solids loading with longer run times in a unique, oversized drop-in design.
Large Diameter, Drop-In Cartridge Filter Element
Advanced Filter Technology Specifically Designed for Over-The-Top® Vessel Systems
Inside to outside flow configuration allows the finest micron retention to have the greatest allocation of surface area
Graded-design, controlled porosity depth media for precise particle retention and consistent performance
Deep-pleated design and structurally reinforced upstream/downstream for product stability
Long cycle times and enhanced life make them more economical than using standard cartridge filters
Greater surface area due to larger physical size compared to other competitive products, providing lower cost-per-gallon to filter
Retrofits most standard #2, #4 & #5 size filter housings, avoiding the capital expense of new equipment

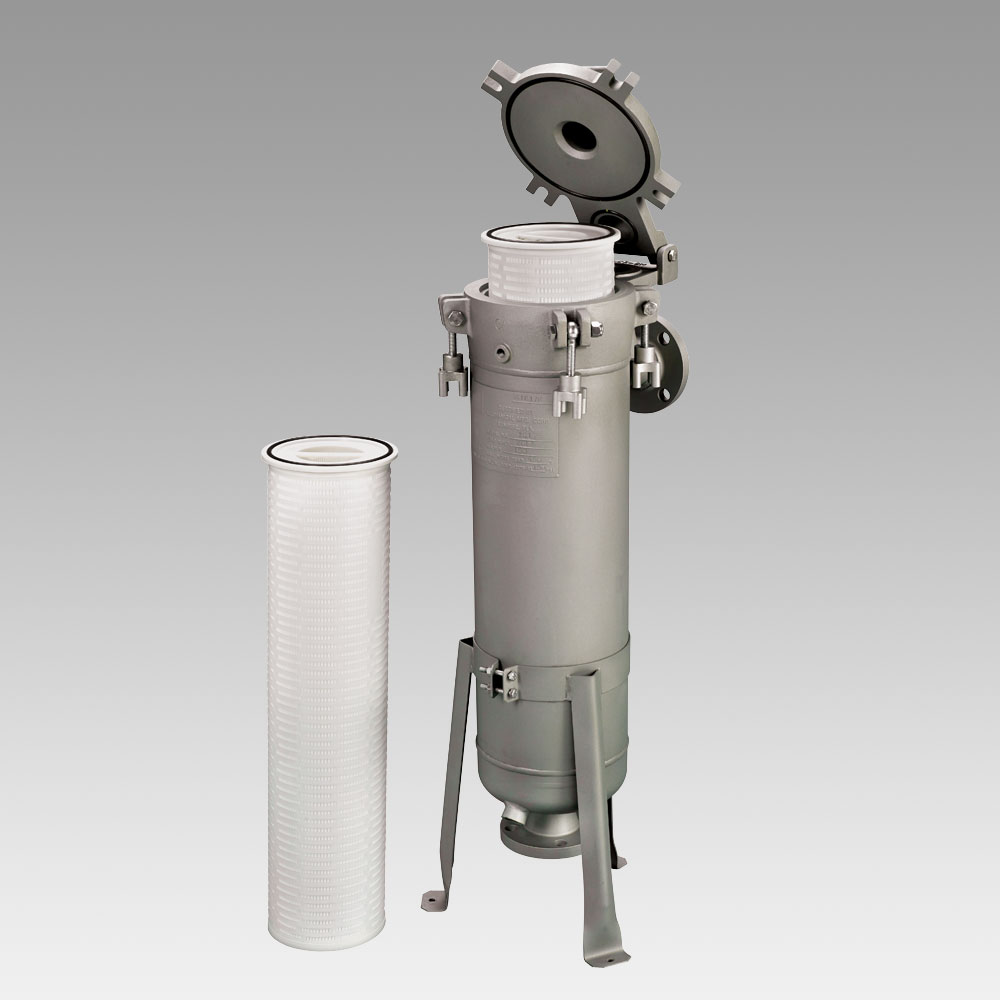

Easy to use drop-in design requires no support basket for use, further reducing pressure buildup
Filtered solids are contained within the element, so removal of the cartridge fully eliminates vessel cleaning
SPECIFICATIONS

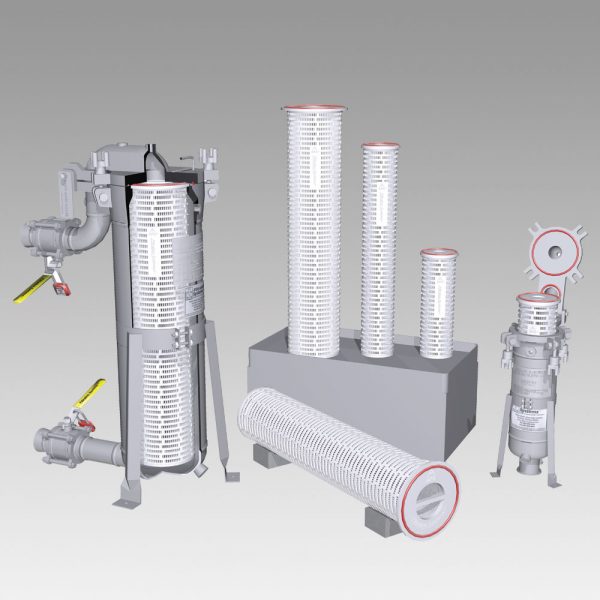

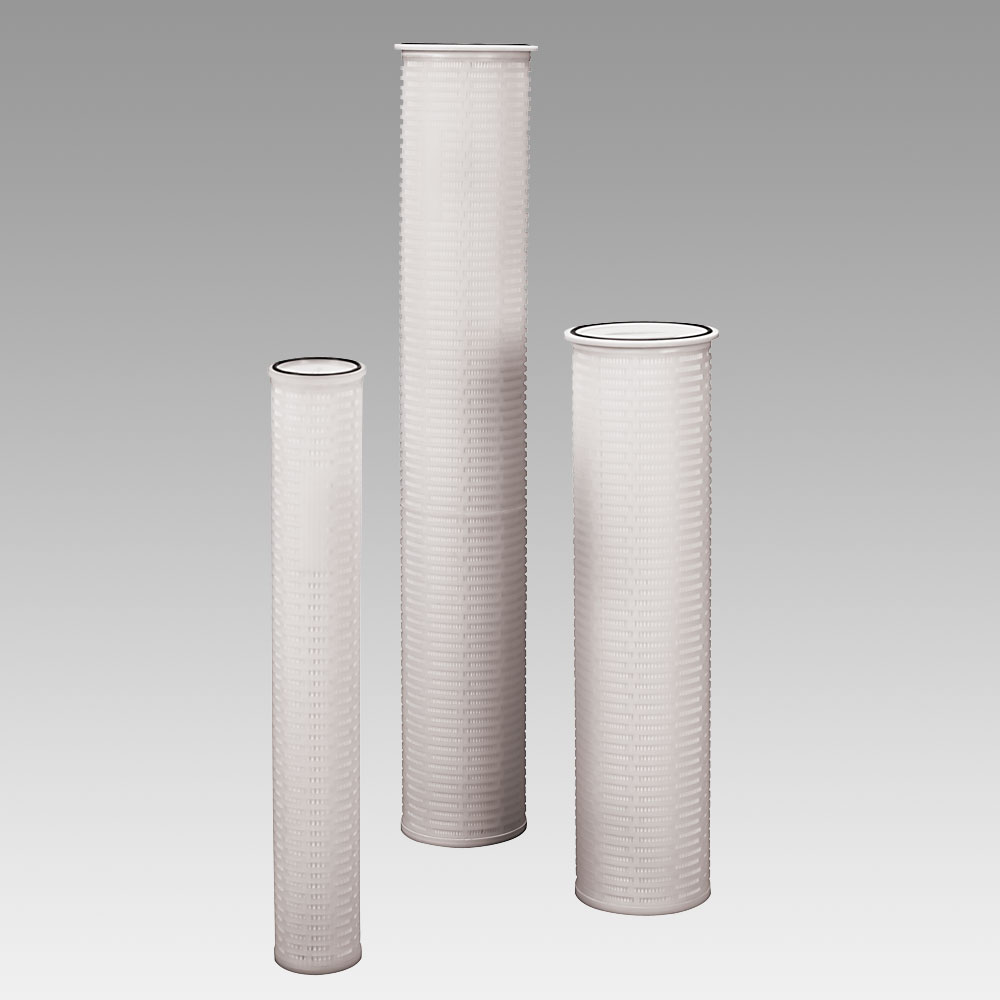

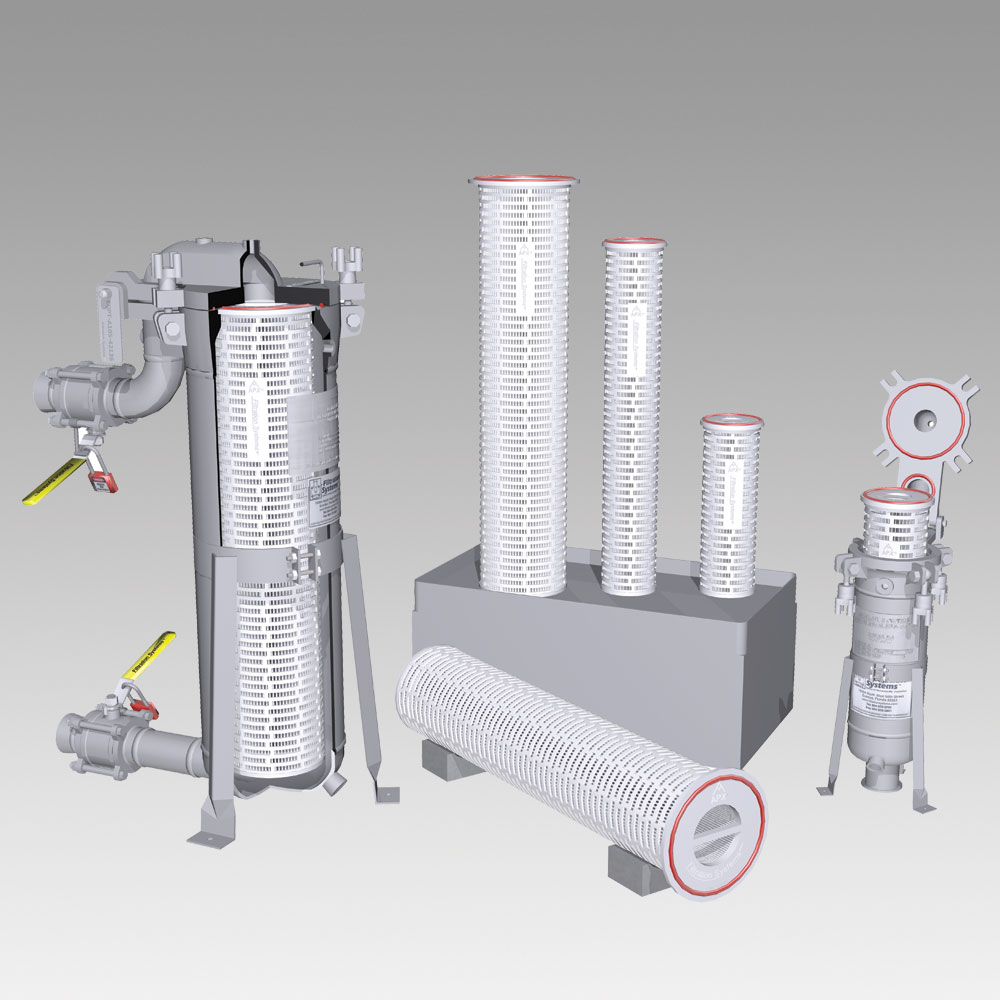

Available in three sizes: APX-728: 7″Dia. x 28″L APX-412: 4″Dia. x 12″L APX-422: 4″Dia. x 22″L
Materials of Construction: 100% Polypropylene
All materials are FDA listed for food contact in Title 21 of U.S. Code of Federal Regulations
Absolute-rated efficiency of 99% available in seven-micron ratings: 0.5, 1, 5, 10, 25, 50 and 100. (ASTM F 795 Test)
Maximum Flow Rate (water) APX-728: 90gpm APX-412: 20gpm APX-422: 30gpm
Maximum Operating Temperature 176°F/80°C
Maximum Recommended Change-out Differential 35 psid
Maximum Differential Pressure of the APX® element 50 psid at 68°F and 45 psid at 120°F
PurSeal® flange provides hydrostatic compression seal when used in our Over-The-Top® design housings, eliminating bypass of unfiltered liquid downstream
